PCB Antenna Design for Wireless Products

CoreHW provides custom PCB antenna design services for cost-efficient wireless products, from monopole and patch antennas to inverted-F, slot and UWB antenna designs.

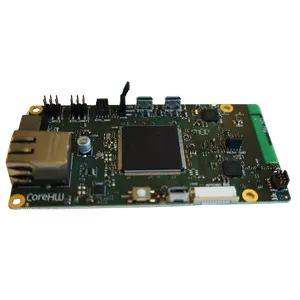

PCB antenna design

PCB Trace Antennas

Monopole, patch, inverted-L, inverted-F and slot antenna designs.

Wireless & UWB Bands

Experience covering 2.4 GHz, 5–7 GHz and UWB frequencies up to 8.5 GHz.

Simulation-Led Design

Iterative virtual design with stakeholder feedback incorporated early in development.

PCB Trace Antennas

Cost-Efficient Antennas Integrated Directly on the PCB

In products where cost pressure defines the manufacturing technologies, PCB trace antennas are a natural choice due to their cost and integration properties.

PCB antennas such as monopole, patch, inverted-L, inverted-F and slot antennas are relatively straightforward to design. However, their performance in terms of polarization, efficiency, return loss, and tolerance to dimensions and materials can range from excellent to poor.

The final performance depends strongly on the skills of the antenna designer and the operating environment of the wireless system.

CoreHW uses PCB trace antennas in many of our products. For example, the chip antenna inside CHW3021 is a close relative of simpler PCB antennas, while our RTLS antenna arrays use patch antennas.

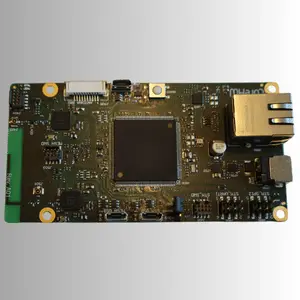

PCB trace antennas
CoreHW CHA68x antenna series

Multiband & UWB Antenna Technology

CoreHW CHA68x Antenna Series

CoreHW has developed the CHA68x antenna platform for narrowband, wideband and ultra-wideband (UWB) RF systems.

The platform covers:

  • 2.4 GHz ISM band for Bluetooth® applications
  • Wi-Fi 7 combo antenna for 2.4 GHz and 5–7 GHz
  • High-frequency Wi-Fi and UWB covering 5.1–8.5 GHz
  • UWB antennas covering Ch5–Ch9, 6.2–8.5 GHz

Other frequency bands and band combinations are also possible.

Custom PCB Antenna Engineering

CoreHW PCB Trace Antenna Design Service

CoreHW can assist with PCB trace antenna design from monopole antennas to UWB antenna solutions.

We use an iterative virtual design process that allows stakeholder feedback to be incorporated during the early design stages. This helps the antenna design evolve together with the requirements of the wireless product.

Our simulation flow is tried and tested. In most cases, first prototypes are working and usable in the product.

RF and antenna PCB designers

Our PCB Antenna Design Approach

01

Antenna Requirements

Define the antenna type, operating frequencies and product requirements.

02

Virtual Design & Simulation

Develop and evaluate the PCB antenna using CoreHW's established simulation flow.

03

Iterative Optimization

Incorporate stakeholder feedback early while design changes remain efficient.

04

Prototype Readiness

Optimize the design toward a working first prototype and product integration.

PCB Antenna Design FAQ

Frequently Asked Questions

CoreHW can support PCB trace antenna designs ranging from monopole, patch, inverted-L, inverted-F and slot antennas to wideband and UWB antenna solutions. The antenna architecture is selected according to the required operating frequencies, integration constraints and wireless system environment.

Start Your PCB Antenna Project

Need a PCB Antenna Designed for Your Wireless Product?

CoreHW can support your PCB antenna development from early virtual design and simulation through optimization for product integration.
